NodeJS, DynamoDB, and Promises

NodeJS, Express, and AWS DynamoDB: if you’re mixing these three in your stack then I’ve written this post with you in mind.  Also sprinkled with some Promises explanations, because there are too many posts that explain Promises without a tangible use case.  Caveat, I don’t write in ES6 form, that’s just my habit but I think it’s readable anyways. The examples below are all ‘getting’ data (no PUT or POST), but I believe it’s still helpful for setting up a project. All code can be found in my github repo.

Level Set

Each example in this post will be a different resource in an express+EJS app, but they’ll all look similar to the following (route and EJS code, respectively):

//  routes/index.js

router.get('/', function(req, res, next) {
 res.render('index', { description: 'Index', jay_son: {x:3} } );
});

(Apologies for the non-styled code. You can view the routes/index.js file in my repo.)

<!-- views/index.ejs -->

<body>
   <h1><%= description %></h1>
   <code><%= JSON.stringify(jay_son,null,2) %></code>
 </body>

http://localhost:3000/

Index
{ "x":3 }

(If any of this looks foreign or confusing, you’ll probably need to backup and study NodeJS, Express and EJS.)

Basic Promise

First up, a very simple Promise that doesn’t really do anything.  But this is how it gets used:

async function simplePromise() {
   return Promise.resolve({resolved:"Promise"});
}
router.get('/simple_promise', function(req, res, next) {
 simplePromise().then( function(obj) {
   res.render('index',
     { description: 'Simple Promise', jay_son: obj });
 });
});

http://localhost:3000/simple_promise

Simple Promise
{ "resolved":"Promise" }

The simplePromise function returns the Promise, and the value has already been computed (because it’s static data).  The route accesses the value under the then() function and we pass obj to the view for rendering.

Get Single DynamoDB Item

For the rest of this post I’m using two dynamoDB tables.  This is not a data model I would take to a client.  It’s inefficient. Rather this data is meant for illustrative purposes only for when JSON storage is a suitable use for your tech stack:

d_bike_manufacturers //partition key 'name'
  { "name":"Fuji", "best_bike":"Roubaix3.0" }
  { "name":"Specialized", "best_bike":"StumpjumperM2" }

d_bike_models       //partition key 'model_name'
  { "model_name":"Roubaix3.0", "years":[ 2010, 2012 ] }
  {"model_name":"StumpjumperM2",
   "years":[1993,1994,1995,1996,1997,1998,2000]
  }

Back to the NodeJS code:

const AWS = require("aws-sdk")
AWS.config.update({ region: "us-east-1" })
const dynamoDB = new AWS.DynamoDB.DocumentClient();

// '/manufacturer'
router.get('/manufacturer', function(req, res, next) {
 var params = { Key: { "name": req.query.name_str },
                TableName: "d_bike_manufacturers" };
 dynamoDB.get(params).promise().then( function(obj) {
   res.render('index',
     { description: 'Simple Promise', jay_son: obj }
   );
 });
});

http://localhost:3000/manufacturer?name_str=Fuji

Single DynamoDB Item
{
   "Item":{
      "name":"Fuji",
      "best_bike":"Roubaix3.0"
   }
}

Very important to note here is how the return data is wrapped within a structure under the key ‘Item’.

Consecutive DynamoDB GETs

If the ultimate database item is not immediately query-able (for some reason), then consecutive DynamoDB calls can be made.  Notice how the Promises are nested.  From the perspective of performance, this is not desirable and can introduce a lot of latency if this pattern is further repeated.  (Some basic testing I did showed P95 times of around 100ms, server side.)  The point of this demonstration is that the first Promise needs to resolve before the second can be constructed. (Best to avoid such consecutive queries, but we’re illustrating here.)

// '/manufacturers_best_bike'
router.get('/manufacturers_best_bike', function(req, res, next) {

  var params = { Key: { "name": req.query.name_str },
                 TableName: "d_bike_manufacturers" };
 dynamoDB.get(params).promise().then( function(obj) {
   if (Object.keys(obj).length==0) {
     res.render('index',
       { description: 'Consecutive DynamoDB Items',
         jay_son: {err: "not found"}
     });
     return;
   }

   var bikeName = obj.Item.best_bike;
   var params2 = { Key: { "model_name": bikeName },
                   TableName: "d_bike_models" };
   dynamoDB.get(params2).promise().then( function(obj2) {
     res.render('index',
       { description: 'Consecutive DynamoDB Items',
         jay_son: obj2 }
     );
   });
 });
});

http://localhost:3000/manufacturers_best_bike?name_str=Fuji

Consecutive DynamoDB Items
{
   "Item":{
      "model_name":"Roubaix3.0",
      "years":[ 2010, 2012 ]
   }
}

Promise.all()

Promises aren’t strictly run in parallel, rather the creation of the Promise starts the respective work.  Using the all() method simply waits for all to resolve and can make your code look a lot cleaner.  In the resource below, we’re querying DynamoDB twice using information from the supplied query parameters.

// '/manufacturer_and_bike'
router.get('/manufacturer_and_bike', function(req, res, next) {
  // Two query params
 var params = { Key: { "name": req.query.name_str },
                TableName: "d_bike_manufacturers" };
 var params2 = { Key: { "model_name": req.query.bike_str },
                 TableName: "d_bike_models" };

 var promises_arr = [
   dynamoDB.get(params).promise(),
   dynamoDB.get(params2).promise()
 ];

 Promise.all(promises_arr).then( function(obj) {
   res.render('index',
     { description: 'Promise.all() for Concurrency',
       jay_son: obj } );
 });
});

http://localhost:3000/manufacturer_and_bike?name_str=Fuji&bike_str=Roubaix3.0

Promise.all() for Concurrency
[
   {
      "Item":{
         "name":"Fuji",
         "best_bike":"Roubaix3.0"
      }
   },
   {
      "Item":{
         "model_name":"Roubaix3.0",
         "years":[ 2010, 2012 ]
      }
   }
]

Note how the items are returned in an array, and in the order of the array of Promises.  One gotcha with Promise.all() is that it’s ‘all’ or nothing, and you’ll need to ‘catch’ if any one of the promises fail.

DynamoDB BatchGet

Using the AWS SDK to perform more of the data operations on the Cloud side is always a good idea.  Instead of iterating over many keys, include all the keys in a single request.  Note the form of the params object allowing us to query multiple tables.

// '/manufacturers' (batch get)
router.get('/manufacturers', function(req, res, next) {
 var manufTableName = "d_bike_manufacturers";
 var manufacturers_array = req.query.names_str.split(",");
 var bikeTableName = "d_bike_models";
 var bikes_array = req.query.bikes_str.split(",");

 var params = { RequestItems: {} };
 params.RequestItems[manufTableName] = {Keys: []};
 for (manufacturer_name of manufacturers_array) {
   params.RequestItems[manufTableName].Keys.push(
     { name: manufacturer_name } );
 }
 params.RequestItems[bikeTableName] = {Keys: []};
 for (bike_name of bikes_array) {
   params.RequestItems[bikeTableName].Keys.push(
     { model_name: bike_name } );
 }
 console.log(JSON.stringify(params,null,2));

 dynamoDB.batchGet(params).promise().then( function(obj) {
   res.render('index',
     { description: 'DynamoDB BatchGet', jay_son: obj }
   );
 });
});

Output from console.log(JSON.stringify(params,null,2));

{
   "RequestItems":{
      "d_bike_manufacturers":{
         "Keys":[ { "name":"Fuji" }, { "name":"Specialized" } ]
      },
      "d_bike_models":{
         "Keys":[ { "model_name":"Roubaix3.0" },
                  { "model_name":"StumpjumperM2" }
                ]
      }
   }
}

http://localhost:3000/manufacturers?names_str=Fuji,Specialized&bikes_str=Roubaix3.0,StumpjumperM2

DynamoDB BatchGet
{
  "Responses": {
    "d_bike_models": [
      {
        "model_name": "StumpjumperM2",
        "years": [
          1993,
          1994,
          1995,
          1996,
          1997,
          1998,
          2000
        ]
      },
      {
        "model_name": "Roubaix3.0",
        "years": [
          2010,
          2012
        ]
      }
    ],
    "d_bike_manufacturers": [
      {
        "name": "Specialized",
        "best_bike": "StumpjumperM2"
      },
      {
        "name": "Fuji",
        "best_bike": "Roubaix3.0"
      }
    ]
  },
  "UnprocessedKeys": {}
}

Summary

A little JSON can go a long way especially when building an MVP, or dealing with unstructured data. IMHO NodeJS + DynamoDB is a very powerful pairing to facilitate this data in your AWS premise.

Happy coding.

Node.js Web App Deployed to AWS Fargate w/ Auto-Scaling

TL/DR: I present a detailed how-to for deploying a (hello world) Node.js web application (in container image form) onto AWS Fargate with auto-scaling. This could be useful for the start of your project and then add subsequent layers for your purposes, or bits and pieces of this how-to could help solve a particular problem you’re facing.

Motivation and Background

It is not enough to be able to write software.  One must also be able to deploy.  I’m reminded of the Steve Jobs quote, “real artists ship.”  Even if you wrote the next killer social media website, it means nothing unless you can get it out the door, hosted, and in a stable (and scalable!) production environment.  This post is an extracted walk-through of how I used the new AWS service Fargate to host a side project.

What is Fargate?  It’s a generalized container orchestration service.  “Generalized” here means that AWS has taken care of the underlying infrastructure usually associated with the creation of a ‘cluster’ (in the kubernetes sense) of computing resources.  Bring your own container (the portable form of your application) and through configuration in the AWS console the application can be deployed into an auto scaling cluster, with integrations for Application Load Balancing, Certificate Management (ACM) for HTTPS, and DNS (Route 53).  And what’s really nice is the container can be given an IAM role to call other authorized AWS Services.

Here’s the user story for this article, to help bridge the developer and product owner / business gap:

As an application/DevOps engineer, I want to deploy my containerized application to an orchestration service (AWS Fargate), so that I can avoid the headaches and complexity of provisioning low level services (networking, virtual machines, kubernetes) and also gain auto scalability for my production/other environment.

– an application/DevOps engineer

The Big Picture

From the Node.js source all the way to a live app, here’s how the pieces fit together in one picture. (The draw.io file is included in my github repo.)

Fig. 1: Node.js app, Image Repository, Fargate, & ALB

Node.JS Web App

A very basic ‘hello world’ app can be pulled from my github repo:

git clone \
https://github.com/yamor/nodejs_hello_world_dockered.git && \
cd nodejs_hello_world_dockered && \
npm install

# Give it a go and run
npm start
# ... then access at localhost:3000

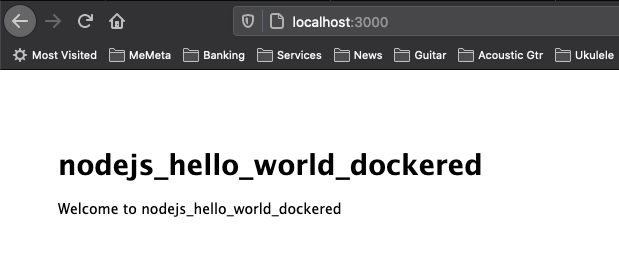

Fig. 2: Node.js application up and running

It’s a very basic application:

  • Built from npx express-generator
  • Changed the routes/index.js ‘title’ variable to ‘nodejs_hello_world_dockered’
  • Added a Dockerfile, which we’ll walk through now…

Dockerfile

$ cat Dockerfile
 FROM node:12.18.2-alpine3.9
 WORKDIR /usr/app
 COPY . .
 RUN npm install --quiet
 RUN npm install pm2 -g
 EXPOSE 3000
 CMD ["pm2-runtime", "start", "./bin/www", "--name", "nodejs_hello_world_dockered"]

Some explanation:

  • The COPY command is copying all the Node.js source into the container
  • pm2 is installed for process management, reload capabilities, and it’s nice for production purposes adding a layer on top of the core Node.js code, and not necessary for small development efforts.  But importantly, the container is using pm2-runtime which is needed to keep a container alive.

Docker Commands

Assumption: docker is installed and running.

$ docker -v
Docker version 19.03.6-ce, build 369ce74

Docker build, run then a curl to test.

# this command builds the image that is ultimately
# deployed to fargate
docker build -t nodejs_hello_world_dockered .

docker run -d -p 3000:3000 nodejs_hello_world_dockered

$ curl localhost:3000
<!DOCTYPE html><html><head><title>nodejs_hello_world_dockered</title><link rel="stylesheet" href="/stylesheets/style.css"></head><body><h1>nodejs_hello_world_dockered</h1><p>Welcome to nodejs_hello_world_dockered</p></body></html>

When done, kill the running container but keep the image.

# kills all running containers
docker container kill $(docker ps -q)

# you should see our nodejs_hello_world_dockered
docker images

Push the Image to a Container Registry

Tip: Use an EC2 or Devops/pipeline within AWS (and not your local machine) for image building and pushing, as uploads from a slow or residential network can take a long time.  Take proximity into account for your approach/strategy for large data movements. This tip should have preceded the Docker section above, but the rationale might not have become apparent until you attempt to push an image to a registry and find that it’s way too slow.

Assumption: the AWS CLI is installed and has an account with appropriate authorizations.

$ aws --v
 aws-cli/1.16.30 ...

Assumption: you have an ECR repository created.

Now to push and it’s just two commands (but preceded by an AWS ECR login), to label the image then upload it.  Notice the label contains the repositories address.

aws ecr get-login --no-include-email --region us-east-1 \
| /bin/bash

docker tag nodejs_hello_world_dockered:latest \
1234567890.dkr.ecr.us-east-1.amazonaws.com/fargate_demo:latest

docker push \
1234567890.dkr.ecr.us-east-1.amazonaws.com/fargate_demo:latest

AWS & Fargate

Congratulations, at this point the application is in a nice and portable (container) format and residing in an AWS ECR repository.  The Fargate configuration will consist of the following:

  • Task: defines the container configuration
  • Cluster: regional grouping of computing resource
  • Service: a scheduler which maintains the running Task(s) within the Cluster…

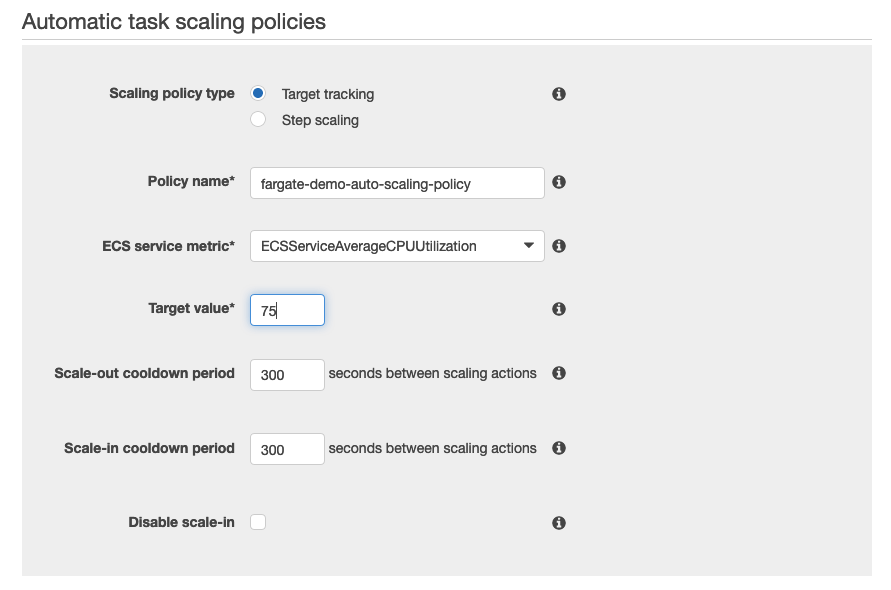

    • Auto-scaling will be configured at this level of the stack and will scale up the number of Tasks as configured

The remaining AWS service is a Load Balancer which is separate from Fargate. It will be described later as it exposes the application to the greater web.

Task Definition

Access the AWS Console > (ECS) Elastic Container Service > (left side menu) Task Definitions > click ‘Create new Task Definition’. On the next screen click ‘Fargate’ and then ‘Next Step’.

Fig. 3: Fargate launch types

On the next screen, fill in the following:

  • Name: I have called it ‘fargate-demo-task-definition’
  • Task Role: this can be left as ‘none’, but I can’t stress enough how versatile this is.  If your Node.js app needs to make call to DynamoDB, Simple Email Service, or any other Amazon service, you can enable it here.  Using the node package aws-sdk will automagically query a resource URI at runtime to gain credentials, thus granting authorizations to your app for the role specified.  This is very cool.
  • Task Execution IAM Role: leave as the default ‘ecsTaskExecutionRole’, see the image below for the succinct AWS explanation
  • Task Size: this provides a lot of room for tuning, but for this simple Node.js app I’ve plugged in 0.5GB and 0.25CPU respectively for memory and CPU allocation.
  • Add Container:
    • Container Name: I have called it ‘fargate-demo-container-image’
    • Image: Use the image URI from the end of the ‘Upload to Container Registry Section’ which was of the form ‘1234567890.dkr.ecr.us-east-1.amazonaws.com/fargate_demo:latest’
    • Memory Limits: AWS recommends 300MiB to start for web apps.
    • Port Mappings: 3000, for the container port exposing the Node.js application.
    • …then click ‘Add’.
  • Tags: always try to tag your AWS resources.
  • …then click ‘Create’.

Cluster

Access AWS ECS and click ‘Create Cluster’.

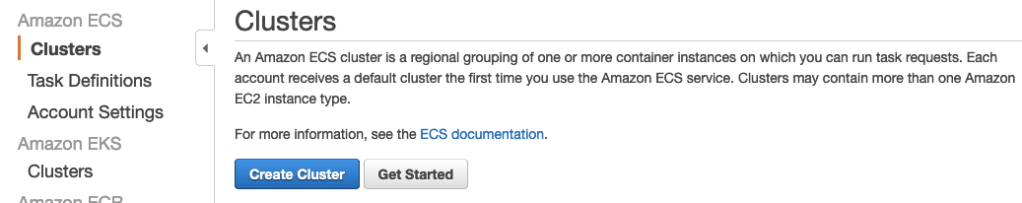

Fig. 4: Cluster creation

There are a lot of different configurations for computing resources, networking, and scaling but we’ll stick with the simple case and select Networking Only.

Fig. 5: Cluster templates

On the next screen, give it a name such as ‘fargate-demo-cluster’.  Leave the ‘Create VPC’ unchecked as we can use the default one but if you’re deploying an intensive app you may want a dedicated VPC.  Add any tags.  (I highly recommend adding tags so you can quickly search and find associated resources for your projects.)

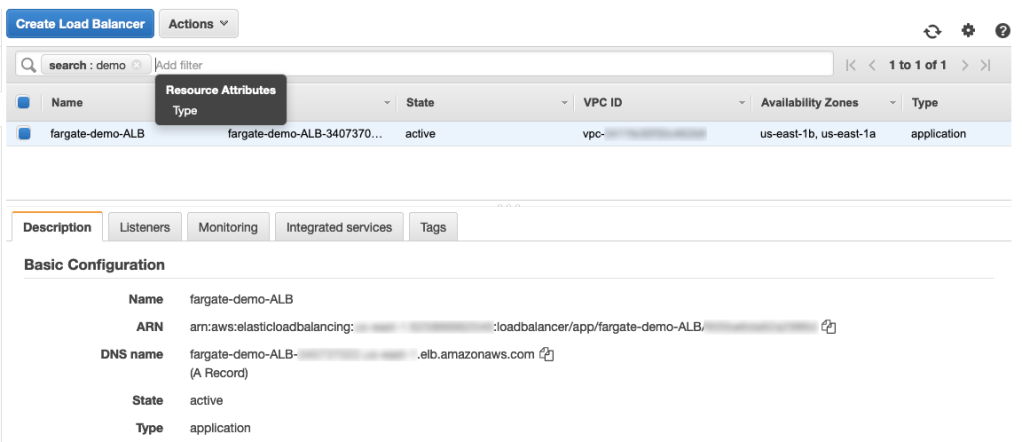

ALB – Application Load Balancer

Access the ALB service and click ‘Create’: EC2 > (left side menu) Load Balancers > ‘Create’ > (Application Load Balancer / HTTP / HTTPS) ‘Create’.

On the next configuration screen, make the following changes:

  • Name: I have called it ‘fargate-demo-ALB’
  • Listeners: for now we’ll keep HTTP port 80, though this target group will be deleted eventually.  (The ALB creation wizard requires at least one target group.)
    • (Not included in this article, but once the entire system is up it’s easy to add a second listener for HTTPS port 443 while also including a certificate from ACM.)
  • Availability Zones: choose the intended VPC and select multiple subnets which will eventually become contain the targets for this ALB

Click ‘Next: Configure Security Groups’, though an intermediary page will warn about the absence of a ‘secure listener’.  We’ll click through this for now, but as mentioned above a 443 listener can be added in the future (but not part of this article).

On the next page, we’ll ‘Create New Security Group’ and call it ‘fargate-demo-security-group’.  Leave the default TCP port of 80, and notice that it’s open to any IP source (0.0.0.0/0, ::/0).  Then click ‘Next: Configure Routing’.

On this next page, give the target group a name (fargate-demo-target-group).  In the screengrab below, it’s important to understand that the ALB will regularly check for the application providing an HTTP status code 200 at the specified path.  The Node.js app was created to offer a basic response on the root path so the following configuration is fine.

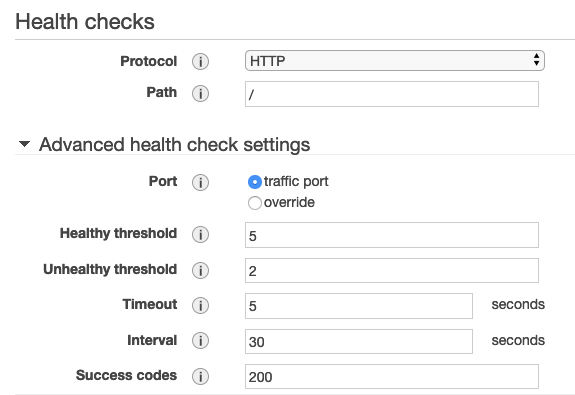

Fig. 6: ALB health checks

Click ‘Next: Register Targets’, but we’ll skip that page and click ‘Next: Review’ then ‘Create’!

Service

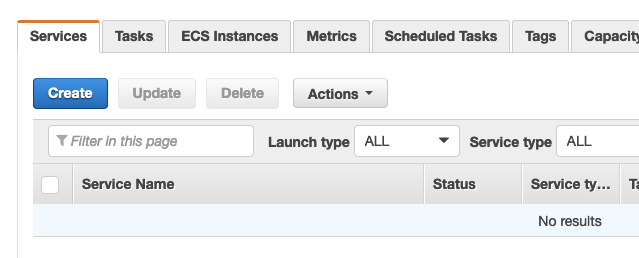

The Fargate Service will provide an instance of the Task Definition to be run in the Cluster.  Navigate to AWS Console > ECS > (left side menu) Clusters > then click on the Cluster we created “fargate-demo-cluster”.  And at the bottom of the screen will be a tag for ‘Services’, click the button ‘Create’.

Fig. 7: Service creation

On the next page fill in the following info:

  • Launch type: Fargate
  • Task Definition: pull down the menu and you will see our previously configured ‘fargate-demo-task-definition’.  As you upload more revisions to this ECR repository, the revision numbers will increase.
  • Cluster: pull down the menu and find the ‘fargate-demo-cluster’ created previously.
  • Service Name: I have entered “fargate-demo-service”
  • Number of Tasks: enter ‘1’ for this demo.  You may wish to increase this depending on your application.
  • Tags: always be tagging!
  • … click ‘Next Step’.
Fig. 8: Service configuration details

On the next page, edit the following:

  • Cluster VPC + Subnets: It’s important to select your target VPC here, which will probably be your default.  But it needs to be the same as where the ALB was created earlier in this article, also select the same subnets.
  • Security Groups: click ‘Edit’ and add a Custom TCP with port 3000, and then delete the HTTP with port 80 (as this won’t be used).  The 3000 corresponds to the container’s externalized port.
    • (See Figure 9 below.)
    • … click “Save”
  • Load Balancer Type: select the radio button for “Application Load Balancer”, which will then display a pulldown where we can select the “fargate-demo-ALB” we had created earlier.
  • Container to Load Balance: pull down this menu to select the “fargate-demo-container-image” and click “Add to Load Balancer” and this will change the wizard’s form.
    • (See Figure 10 below.)
  • In the updated form, modify the following:
    • Production Listener Port: change to 80:HTTP, this is the listener originally created during ALB creation.
    • Path Pattern & Execution Order: set to ‘/’ and ‘1’ respectively, this will enable the ALB to forward base path requests to the application.
    • Health check path: also set to ‘/’, to ensure the Fargate Service doesn’t incorrectly infer that your app needs to be restarted.
  • … click “Next Step”
Fig. 9: Creating the Security Group

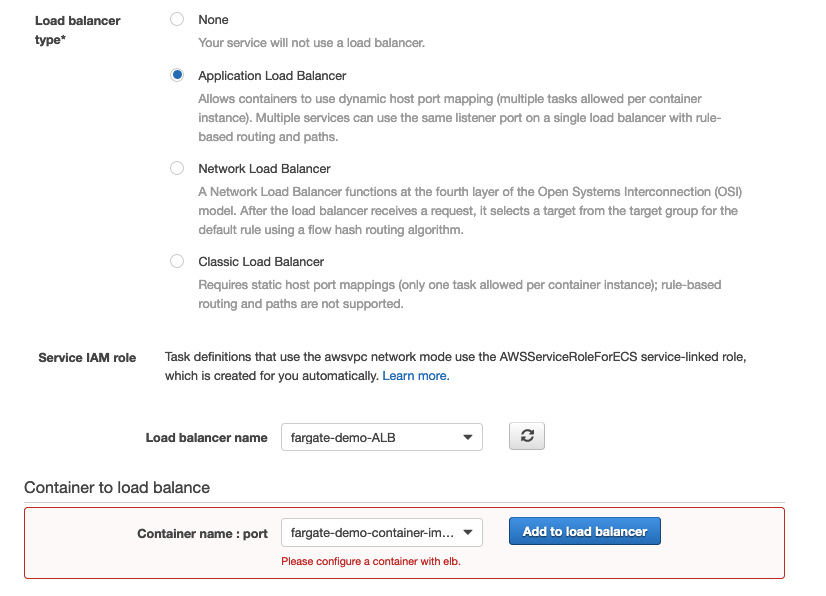

Fig. 10: Container for load balancing

Now the Set Auto Scaling screen is presented.  This can be bypassed by selecting “Do not adjust” in the first option, but I’ve described a minimal scaling configuration below:

  • Minimum, Desired & Maximum number of tasks: I have set as ‘1’, ‘1’ and ‘3’ respectively.  Self explanatory, and configure as your app requires.
  • IAM Role: select ‘Create new Role’
  • Automatic Task Scaling Policy
    • Policy Name: I have named it ‘fargate-demo-auto-scaling-policy’
    • ECS Service Metric & Target Value: there are three options here, I have had best experience with sticking with ‘ECSServiceAverageCPUUtilization’ set to 75%
    • (See image below.)
  • … click “Next Step”
  • Review the final configuration and click “Create Service”
Fig. 11: Number of tasks for scaling
Fig. 12: Scaling policy

In the page to view the Service, after a few minutes the Task will be listed as Running!

Fig. 13: A task with status RUNNING

Go back to the AWS Console > EC2 > Load Balancers.  In the “fargate-demo-ALB”, grab the DNS Name.

Fig. 14: Grab the DNS name from the ALB

Plug it into your browser and voila, it’s the same hello world app from before we even containerized it.

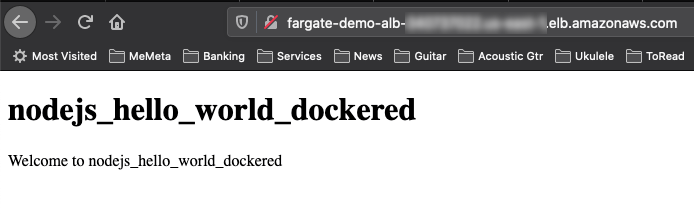

Fig. 15: ALB through to Fargate and the application running

Final Thoughts and Next Steps

Note that this is only HTTP, your browser will warn that it’s insecure.  It’s easy to add a second ALB listener on port 443 and at the same time bring in a certificate from ACM.  Then point your Rt53 to the ALB (via alias) and you’ll have your app securely offered over HTTPS!
